| SL No | Item Description | 30W | 60W | 100W | 120W | 150W |
| 1 | Power | 30W±10% | 60W±10% | 100W±10% | 120W±10% | 150W±10% |
| 2 | Input Voltage | 100-265V AC | ||||
| 3 | Power factor | ≥ 0.9 | ||||
| 4 | Total Lumen Output(LM) | 3300±5% | 6600±5% | 11000±5% | 13200±5% | 16500±5% |
| 5 | Luminous Efficacy(Lm/W) | 110lm/w | ||||
| 6 | Color Temperature (K) | 6500K | ||||
| 7 | CRI (Ra) | ≥ 80 | ||||
| 8 | LED Chip Type | SMD Type | ||||
| 9 | LED Chip Brand | Philips/Bridgelux/Epistar | ||||
| 10 | Driver Type | Isolated | ||||
| 11 | Beam Angle | 70×140◦ | ||||
| 12 | Life Time | 50000 hrs | ||||
| 13 | Warranty | 2Years | ||||
| 14 | Surge Voltage | 4KV | ||||
| 15 | Body Material | Die – Casting Aluminum with better heat Dissipation Property | ||||
| 16 | Size(mm) | 376x172x62 | 420x200x62 | 495x215x75 | 540x2154x75 | 595x235x75 |
| 17 | IP Rating | IP67 | ||||
| 18 | Working Temp | -20◦ C+ 50◦ C | ||||
| 19 | Humidity | 10% – 95% | ||||

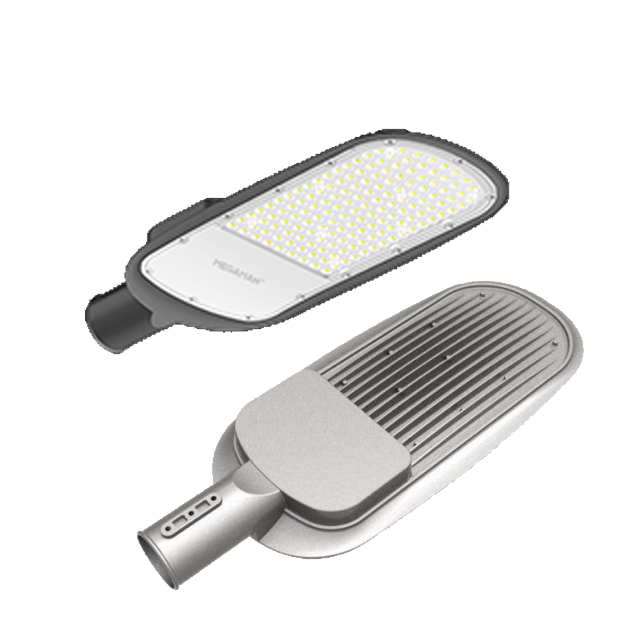

Street Light (Blade Series)
# Die-cast aluminum lamp body, excellent heat dissipation performance
# IC constant current drive, integral glue filling, safe and reliable
# Integrated lens, professional light distribution Angle design
# 100-240V wide voltage input, high surge protection
# IP65 dustproof and waterproof grade, IK08 anti-impact grade
# High quality 2835 LED chips, 110lm/W
# Comply with CB, Safe and reliable
