High Mast Light - MEGAMAN BANGLADESH

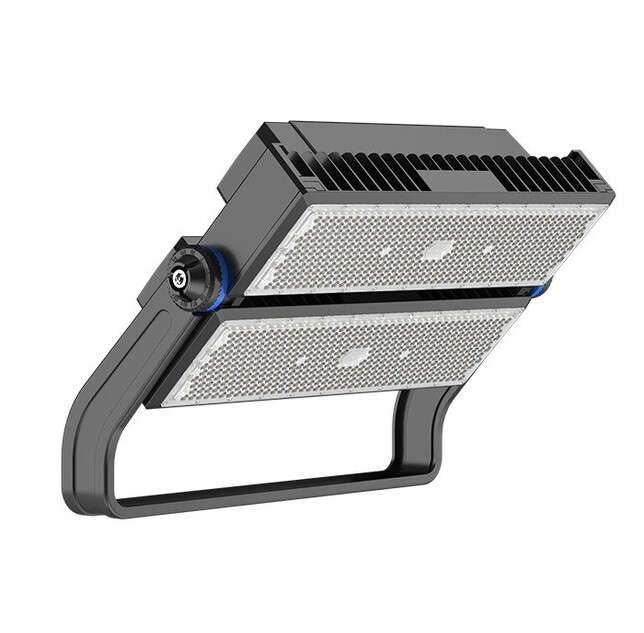

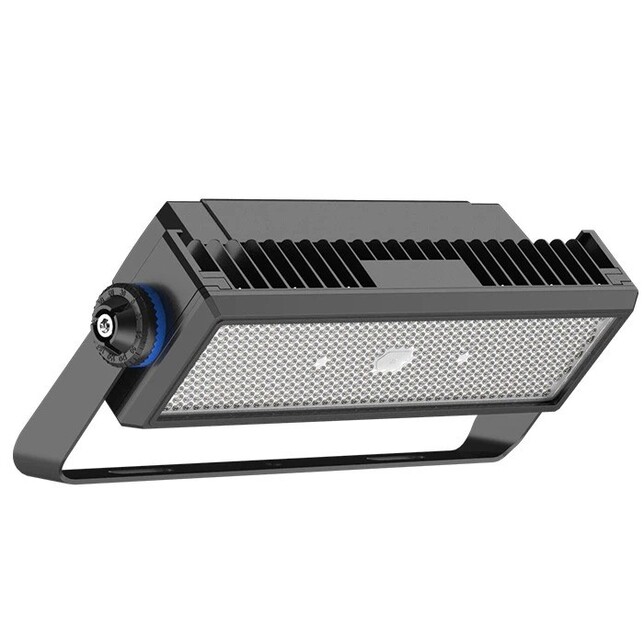

Megaman High Mast Light

Application

Short Description
- Die-casting technology: ADC12 provide the heat sink with excellent thermal management.
Blue corner: unique appearance and increases industrial look.
- Modular design: easy to assemble and disassemble, facilitate customer inventory and fast delivery to project.
- Rotatable module: each module can be rotated by ± 30°
- Galvanized steel bracket: high corrosion resistance.
- Spill shield: reduces the light pollution.
- 1-10V dimming for option.
- Integrated breather valve: balance the internal and external pressure, humidity and temperature.

High Mast Light Technical Specifications:

Model	ZDL3019C
Power	200Watt, 400Watt,600Watt, 800Watt,1000Watt, 1200Watt,
Efficiency	140/150 Lumen Per Watt.
Input Voltage	AC85-265VVAC, 50/60Hz.
Power Factor	>0.95
CRI	>80Ra
CCT	3000K/4000K/5700K/6500K
IP/IK	IP66/IK08
Materials	Aluminum + PC
Beam Angle	10°/15°/25°/45°/60°/90°/65°25°
Led Chips	OSRAM
Power Supply	MEANWELL / SOSEN
Dimmability	Dim or Non-Dim.
Application	Football Field, Stadium Light, Dock Yard, Crane Tower, Port.
